dVault Posts And Pedestals

Heavy-duty dVault mailboxes  are designed with a Universal Mounting Plate that allows for easy configuration between mailboxes and posts. All posts and pedestals are available in all finishes so that mailboxes can match their stands perfectly. No matter what installation preference: post mount, column mount, wall mount, or freestanding, there is a perfect dVault combination for every location.

Note: Additional hardware may be required to complete installation.

DVJR0060PI

DVCS0070 on a DVJR0060PI

DVCS0070 on a DVJR0060PI

DVJR0050PI

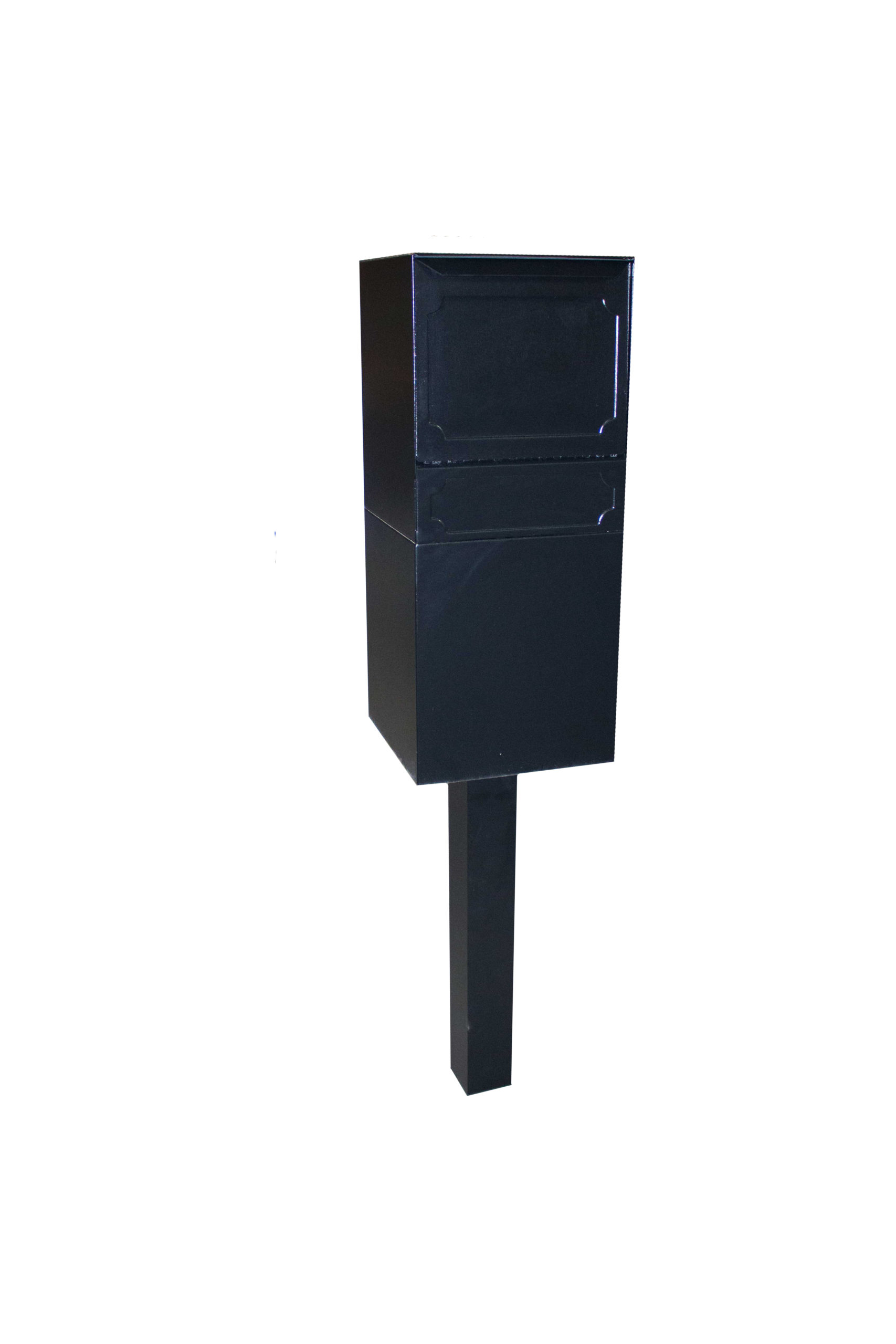

DVU0050 on a DVU0050PI

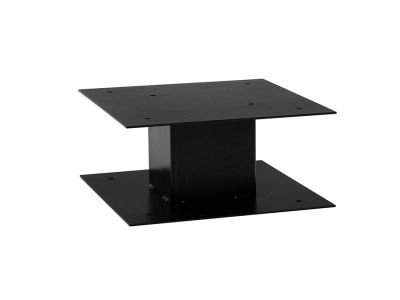

DVCS0030P

DVJR0060 on a DVJR0060PI

Weight And Dimensions

dVault Post/Pedestal Model NumberDescriptionHeight (inches)Width (inches)Depth (inches)Weight (pounds)
DVJR0060PITop mount/In ground484410
DVJR0060PATop mount/Above ground30447
DVJR0060SMPASide mount/Above ground594414
DVJR0060SMPISide mount/In ground774415
DVU0050PITop mount/In ground29.54412
DVU0050PATop mount/Above ground13.5 4410
DVCS0030PTop Mount Pedestal/Above ground10.2518.7518.75 57

Description

dVault products can be mounted using the dVault mailbox posts noted below. Generally speaking, in ground installation is preferred to above ground if possible.
dVault Model NumberdVault Product NamePosts that fit product
DVCS0070Mail Protector VaultDVJR0060PI—Top mount/In ground

DVJR0060PA—Top mount/Above ground
DVJR0060Weekend Away VaultDVJR0060PI—Top mount/In ground

DVJR0060PA—Top mount/Above ground

DVJR0060SMPA--Side mount/Above ground

DVJR0060SMPI--Side mount/In ground
DVU0050 Parcel Protector VaultDVU0050PI—Top mount/In ground

DVU0050PA—Top mount/Above ground
DVWM0062sPackage Drop VaultWall mount; no posts
DVWM0062saPackage Drop Vault PlusWall mount; no posts
DVCS0023Collection VaultDVCS0030P—Top mount pedestal/Above ground
DVCS0020Deposit VaultDVCS0030P—Top mount pedestal/Above ground
DVCS0015Full Service VaultFree standing or Column mount; no posts

By Model

ModelCapacityInstallation Options
Mail Protector VaultSmallTop Mount Post (Above or In-Ground)
Weekend Away VaultMediumTop Mount Post (Above or In-Ground)
Side Mount Post (Above or In-Ground)
Column Installation
Parcel Protector VaultLargeTop Mount Post (Above or In-Ground)
Column Installation
Package Drop VaultLargeWall Installation
Package Drop Vault PlusLargeWall Installation
Deposit VaultExtra LargeFreestanding
Pedestal Mount
Column Installation
Collection VaultExtra LargeFreestanding
Pedestal Mount
Column Installation
Full Service VaultExtra LargeFreestanding
Column Installation

By Installation Type

Post Mount Installation

dVault offers post mount mailboxes  in small, medium, and large capacity. The Mail Protector Vault, Weekend Away Vault, and Parcel Protector Vault can all be mounted on top of a post. The Weekend Away Vault has the most flexible post mount options and can also be mounted to the side of a post. See above and in-ground installation options for each below:

  • Mail Protector Vault
  • Weekend Away Vault
  • Parcel Protector Vault

Column Mount Installation

Almost all dVault models can be installed in a column; the only exceptions are the Mail Protector Vault (post mount) and the Package Drop Vault (wall mount). Column installation is often completed by a professional and installation examples can be viewed below:

  • Weekend Away Vault
  • Parcel Protector Vault
  • Full Service Vault
  • Deposit Vault
  • Collection Vault

Wall Mount Installation

Wall mount installation is available for two dVault models: the Package Drop Vault and Package Drop Vault Plus. Wall mount installation allows packages to be delivered outside of the building and dropped inside of the building (either loosely or into a locked collection area). The Package Drop Vault and Package Drop Vault Plus are designed to fit between 16” wall studs in external walls and require professional installation.

  • Package Drop Vault
  • Package Drop Vault Plus

Freestanding Installation

All extra large capacity mailboxes  can be installed as freestanding units: the Full Service Vault, Deposit Vault, and Collection Vault. Both the Deposit Vault and Collection Vault can also be elevated by a 10” steel pedestal.

  • Full Service Vault
  • Deposit Vault
  • Collection Vault

dVault’s Universal Mounting Plate Dimensions
